DGXPRESS UG Series* UV Printer/Cutters
Combining the flexibility of print and cut, the benefits of UV-LED printing and Roland DG's renowned commitment to reliability, the DGXPRESS UG Series makes professional UV print technology accessible to businesses of all sizes.
- High-speed printing for maximum productivity.
- Highly precise print expression.
- Broad media compatibility.
- Fast drying print for quick turnaround and finishing.
- Speciality printing for textures and effects.
UV Print and Cut Solutions
Do Even More with UV Print and Cut
Enhance your capabilities with the added power of high-speed, reliable UV-LED printing technology, extensive media compatibility and speciality effects capabilities.
Everything You Need to Succeed
Choose from a variety of models and sizes to suit your business.
Power your workflow with our most intelligent engine yet.
Get stunning results every time with economical UV ink.
Keep your business going with unparalleled support.

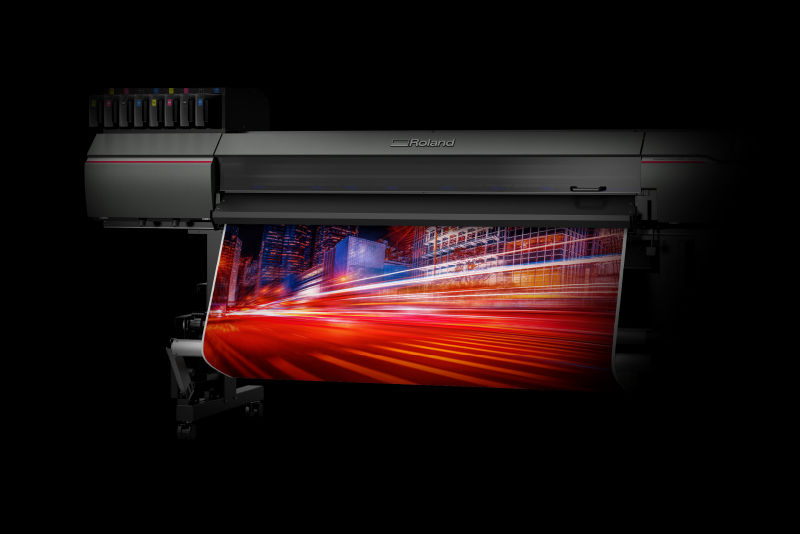

Ultimate Productivity
DGXPRESS is the ideal solution for those who need professional, reliable equipment which can exceed the demands of a thriving economy.
Every element of the DGXPRESS UV printing solution is meticulously refined to deliver high-speed output with healthy margins. With instant drying there's no need to wait for post-processing, letting you produce more and grow faster.
Exceptional Print Impact with Special Effects
Roland DG's UV printing solutions are crafted with precision to deliver sharp detail and stunning colour to stand out from the competition.
The addition of gloss UV ink gives you the ability to produce a wide range of special effects, further enhancing your output.
Leaders in Print and Cut
Roland DG invented print and cut technology in 1995, creating an outstanding breadth of opportunities for print professionals.
With print and cut, you can create a wide range of applications from stickers to signage, increasing your profit-making capabilities with the help of:
- Unattended operation for large quantities of stickers and labels.
- Perforation cut for faster processing after output.
High Performance Ink
Using the latest D-UA inks for high-performance and economical printing, you can get maximum speed with dual-CMYK or offer more products with the addition of White and Gloss ink.
CMYK
CMYK Get premium results with high-quality
Gloss
Generate a multitude of tangible effects, simulated embossing and gloss finishes
White
Print white details or add sub-coats for dark or transparent materials
Certifications
GREENGUARD Gold
D-UA UV inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.

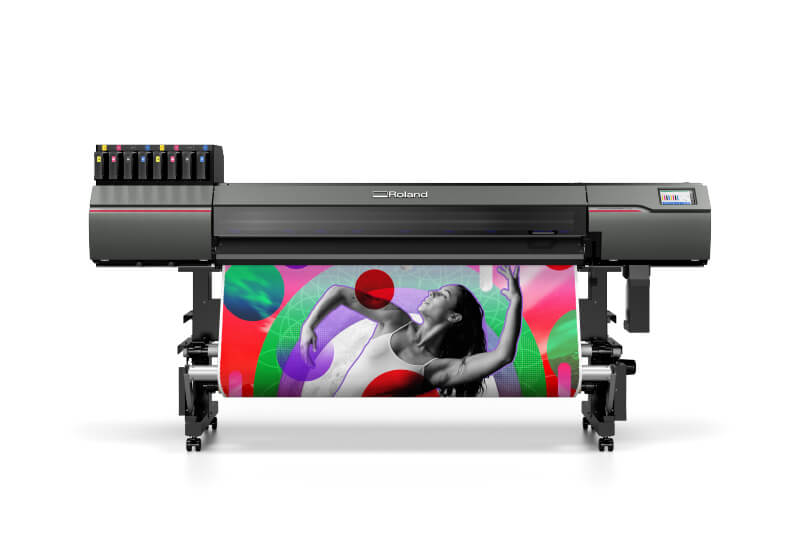

DGXPRESS UG-642High-performance Features
One Pass Multilayer Printing
Print 3 layers in a single job, even in large format or lengthy print runs, with accurate and stable output. The following layer combinations can be selected:
High-Speed Printing
With brand-new print heads in a staggered formation, new powerful UV-LED lamps and the instantly cured UV ink, you can achieve print speeds up to 31.9m2/h and take your print business to a new level of efficiency and profit.
Touch Screen Functionality
Control your device with the greatest of ease thanks to the 7" touch screen, complete with clear and simple menus to give you the information and the functionality you need, when you need it.
Simple Media Calibration
Save even more time with fast and easy media gap and feed compensation. Optical registration technology ensures precise print accuracy and consistent, repeatable results without fuss.
Integrated Take-up Unit
Robust, accurate and easy to use, the UG-642 includes a built in take-up unit to enable long unsupervised print runs.

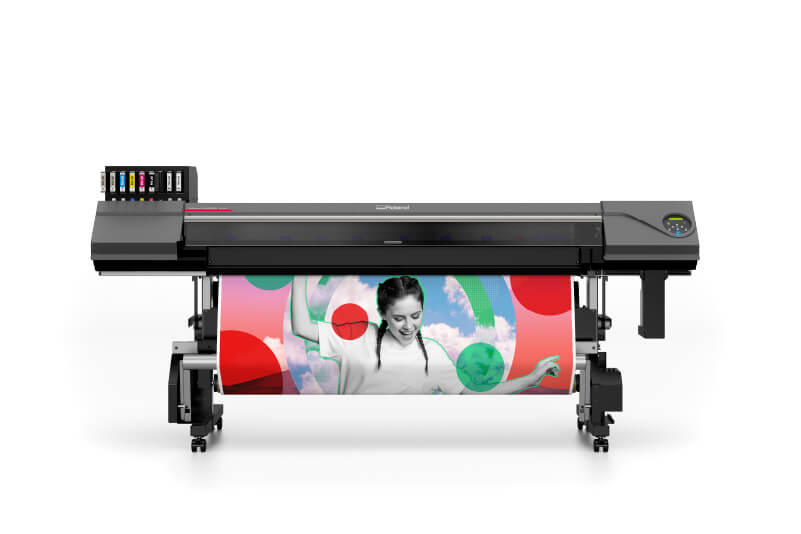

DGXPRESS UG-641Special Features
One Pass Multilayer Printing
Print 3 layers in a single job, even in large format or lengthy print runs, with accurate and stable output. The following layer combinations can be selected:
Low investment
Get more for less with the impressively affordable price-point of the UG-641 and achieve a return on your investment even faster. Thanks to the precision-engineered efficiency, these devices are also cheap to run, lowering the cost of ownership.
Compact Footprint
For smaller workshops and print rooms, the UG-641 is an ideal choice thanks to its more compact footprint.
Extension Table for
Get more stability and accuracy when printing onto thicker card stock with the ET-64 extension table*.
This provides a firm platform which supports semi-rigid media or folding carton paper stocks up to 1 mm as it is fed through the device allowing the simple production of packaging prototypes.
* Optional extra

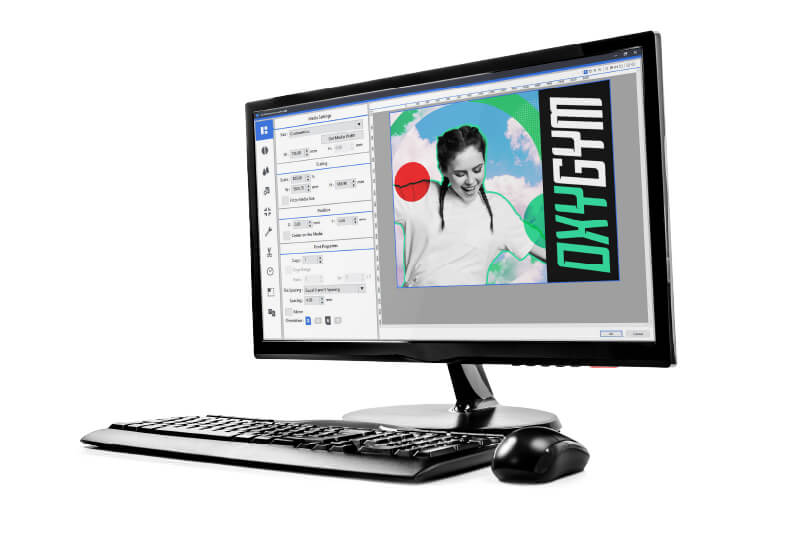

VersaWorks 6
Multifunctional RIP Suite
Besides its high-speed RIP functionality, VersaWorks 6 RIP includes a wide selection of productivity-boosting features:
- A range of built-in colour-matching functions including colour charts, finders and multi-device colour calibration.
- The Job Assistant lets you easily draw and edit cut line settings.
- The Job Variation setting quickly identifies the best print settings for
your customers' needs. - UV post-cure, and auto-generate White and Gloss layers directly in the RIP.
Roland DG Connect App
For Everything Creative
Reduce downtime and improve work efficiency with a machine monitoring assistant that helps you gain a detailed understanding of your entire print operation while keeping your device running at optimum performance.
Key Benefits
|
Great Return on Investment Affordable and powerful, the UG Series can generate profits and pay for itself quickly. |
|
Priced to Suit Your Business Roland DG UV print and cut solutions are available to fit any budget. |
|
Sheet Perforated Cut Separate individual jobs without cutting the backing sheet enabling unattended long runs. |
 |
Efficient and Fluid Workflows Produce your work, your way with flexible job-management features. |
 |
Professional Colour Management Match your customers' colour with ease thanks to advanced RIP features. |
 |
Fast Set-up and Ease of Use Plug in and start working immediately thanks to Roland DG’s user-friendly interface. |
 |
The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability. |
|
Texture Libraries Add extra expression to your prints easily with a library full of exciting printable textures. |
|
Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app. |
|
Media Profiles Print profiles are available and free to download for the most common media types in your area. |
Your High-Value Choice
With the release of DGXPRESS devices, you can now produce professional prints with exquisite quality at an attractive price.
Specifications
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 335 to 1625 mm |
|||||
| Thickness |
Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||||||
| Roll outer diameter | Max. 250 mm (9.8 in.) |
||||||
| Roll weight | Max. 45 kg (99 lb.) | ||||||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||||||
| Printing / cutting width 1 | Max. 1600 mm (62.9 in.) | ||||||
| Ink |
Type | UV-ink (D-UAP) 750ml pouch | |||||
| Colours |
Six Colours (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colours (Cyan, Magenta, Yellow, and Black) |
||||||
| Ink curing unit | Built-in UV-LED lamp | ||||||
| Print resolution (dots per inch) | Max. 1200 dpi | ||||||
| Cutting speed | 10 to 300 mm/s |
||||||
| Blade force 2 | 30 to 500 gf | ||||||
| Blade | Type | Roland CAMM-1 series blade | |||||
| Offset | 0 to 1.500 mm (0 to 59 mil) | ||||||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||||||
| Media heating system 3 | Front heater set temperature: 30 to 55 ℃ (86 to 131 °F) | ||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A | ||||||
| Power consumption | During operation | Approx. 800 W | |||||
| Sleep mode | Approx. 85 W | ||||||
| Acoustic noise level | During operation |
63 dB (A) or less | |||||
| During standby | 58 dB (A) or less | ||||||
| Dimensions (with stand) | 2902 mm x 748 mm x 1412 mm |
||||||
| Weight (with stand) | 209 kg (461 lb.) | ||||||
| Environment | During operation 4 | Temperature : 20 to 32 ℃ (68 to 89.6 °F), Humidity: 35 to 80 % RH (no condensation) | |||||
| Not operating | Temperature : 5 to 40 ℃ (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | ||||||
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 210 to 1625 mm |
|||||
| Thickness |
Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||||||
| Roll outer diameter | Max. 210 mm (8.2 in.) |
||||||
| Roll weight | Max. 40 kg (88 lb.) | ||||||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||||||
| Printing / cutting width 1 | Max. 1600 mm (62.9 in.) | ||||||
| Ink |
Type |
UV-ink (D-UA) 220ml cartridge (white) UV-ink (D-UA) 500ml cartridge (cyan, magenta, yellow, black, and gloss) |
|||||
| Colours |
Six colours(cyan, magenta, yellow, black, white, gloss) Four colours(cyan, magenta, yellow, black) |
||||||
| Ink curing unit | Built-in UV-LED lamp | ||||||
| Print resolution (dots per inch) | Max. 1440 dpi | ||||||
| Cutting speed | 10 to 300 mm/s |
||||||
| Blade force 2 | 30 to 500 gf | ||||||
| Blade | Type | Roland CAMM-1 series blade | |||||
| Offset | 0 to 1.500 mm (0 to 59 mil) | ||||||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-240 Va.c. 50/60Hz 2.8 A | ||||||
| Power consumption | During operation | Approx. 250 W | |||||
| Sleep mode | 40 W | ||||||
| Acoustic noise level | During operation |
63 dB (A) or less | |||||
| During standby | 53 dB (A) or less | ||||||
| Dimensions (with stand) | 2819 (W) x 781 (D) x 1316 (H) mm |
||||||
| Weight (with stand) | 163 kg (360 lb.) | ||||||
| Environment | During operation 3 | Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation) | |||||
| Not operating | Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | ||||||
Available Accessories
Why Choose Roland DG?
People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.
- More than 40 years of trusted technical excellence.
- Robust, flexible technology and repeatable results.
- Unparalleled post-sales service and support.
Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
