Latex Printing That Outperforms the Competition
TrueVIS AP-640 Latex Printer for Vehicle Graphics, Exhibition Signage and Wall Coverings.
Switch to a latex printer that leaves the competition behind. If you print long graphic runs for vehicles, walls and floors, the award-winning TrueVIS AP-640 is the solution for your business. Our trusted TrueVIS platform is the professional's choice for class-leading print quality, low running costs, and instant finishing. Outperform the competition with:
- Unbeatable colour and media stability for long and panelled print runs.
- Natural, vibrant prints that comparable devices can't match.
- Instant drying inks and dual staggered printheads for immediate finishing.
- The best ink adhesion and stretchability on a wide range of media for wrapping and specialist applications.
![Luis Vivas of Vivas Inc.](https://www.rolanddg.eu/-/media/roland-dg/images/products/truevis/ap-640/quote/ap640luisvivas.webp?la=en-150&hash=079E417E0F67BA7C08F52BEF7D18C7B3)
![Luis Vivas of Vivas Inc.](https://www.rolanddg.eu/-/media/roland-dg/images/products/truevis/ap-640/quote/ap640luisvivas.webp?la=en-150&hash=079E417E0F67BA7C08F52BEF7D18C7B3)
"In the past I used a leading latex printer, but to be honest with you, the AP-640 is the way to go."
- Luis Vivas, Vivas Inc.
Powerful Hardware
Grow your business with premium, reliable TrueVIS hardware.
Intuitive Software
Power your workflow with
Premium Inks
Get stunning results every time with economicalRoland DG Care Warranty
Protect your investment with industry-leading support
Do More of What You Do Best with Latex Printing
Why settle for second-best? The AP-640 gives you high colour saturation on a wide range of materials and in a shorter time than other devices, meaning your hardware needn't hold you back any longer.
![High quality wallpaper printed with digital technology](https://www.rolanddg.eu/-/media/roland-emea/images/products/truevis/ap640/ap-640-resin-latex-printed-wallpaper.jpg?la=en-150&h=757&w=801&hash=46341A93805A3E32A27E0C21DDEB75C5)
Wall Coverings
Wallcoverings and Interior Decoration experts choose the AP-640 for its:
Market Ready Application Support
AP-640 inks are compatible with Type 1 & 2 wallpapers supporting domestic and commercial opportunities.
Instant Dry/Instant Finish
For fast production and meeting demanding deadlines.
Colour Stability and Panel Alignment
The platform’s colour stability means that all wallcovering panels are colour consistent and aligned.
Wallcoverings and Interior Decoration experts choose the AP-640 for its market ready application support, instant dry/instant Finish, colour stability and panel alignment
![Image of exhibition stand graphics printed with resin/latex ink](https://www.rolanddg.eu/-/media/roland-emea/images/products/truevis/ap640/exhibition.jpg?la=en-150&h=761&w=801&hash=2724EE34FF63821F3EFE89BD18F834E5)
Exhibition Graphics
Exhibition Graphic experts choose the AP-640 for its:
Low Media Impact
A thin, precise ink layer preserves the media finish.
Instant Dry/Instant Finish
For fast production and meeting demanding exhibition deadlines.
Colour Stability and Panel Alignment
The platform’s colour stability means that all wallcovering panels are colour consistent and aligned.
Exhibition Graphic experts choose the AP-640 for its market low media impact, instant dry/instant Finish, colour stability and panel alignment
![Image showing a digitally printed vehicle wrap](https://www.rolanddg.eu/-/media/roland-emea/images/products/truevis/ap640/ap-640-resin-latex-printed-vehicle-wrap.jpg?la=en-150&h=761&w=801&hash=1DCF42E2EA9725AFCE7DB7A375FBA1DB)
Vehicle Wraps
Vehicle graphics and wrapping experts choose the AP-640 for its:
Media Compatibility
Roland DG resin/latex inks have excellent adhesion to cast vinyl and perform well with a wide range of laminates.
High Ink Stretch
For wrapping the most challenging of surfaces.
Colour Stability
Print and re-print with confidence that additional vehicles or panels are colour correct.
Vehicle graphics and wrapping experts choose the AP-640 for its media compatibility, high ink stretch and colour stability.
Book a consultation with a Roland DG print expert to find out more about the capabilities of the AP-640.
Powerful Hardware
At Roland DG, we don't just say we have the best print hardware - we know it. Built on the tried and tested TrueVIS platform, already utilised by over 26,000 businesses worldwide, you know you can rely on the TrueVIS AP-640.
![Image of a dryer unit on TrueVIS AP-640 resin/latex printer](https://www.rolanddg.eu/-/media/roland-emea/images/products/truevis/ap640/resin-latex-printer-dryer.jpg?la=en-150&h=534&w=801&hash=1F37D275FD8ABAC86A605DC19356940A)
A concentrated airflow maximises energy efficiency and ensures prints that are ready for lamination right away.
![Touch screen on a TrueVIS AP-640 resin/latex printer](https://www.rolanddg.eu/-/media/roland-emea/images/products/truevis/ap640/ap-640-touch-screen.jpg?la=en-150&h=534&w=801&hash=B596EA382DE2A57D807D9F5341A275F8)
Easily control your device and build or manage media presets for a faster, more efficient workflow.
![Image of Take-up unit on a TrueVIS AP-640 resin/latex printer](https://www.rolanddg.eu/-/media/roland-emea/images/products/truevis/ap640/ap-640-take-up-unit.jpg?la=en-150&h=534&w=801&hash=D43F85B8344980099CCA28A007ECAD3A)
Say yes to bigger jobs with a high-quality, stable take-up unit for longer print runs.
![Image of a close up of a printer calibrating automatically](https://www.rolanddg.eu/-/media/roland-emea/images/products/truevis/ap640/gap-adjust-resin-latex-printer.jpg?la=en-150&h=534&w=801&hash=0D7108B41BDEA1B84072D3EACFEFE789)
Ensure consistent print output when printing new media types or changing rolls thanks to automatic optical calibration.

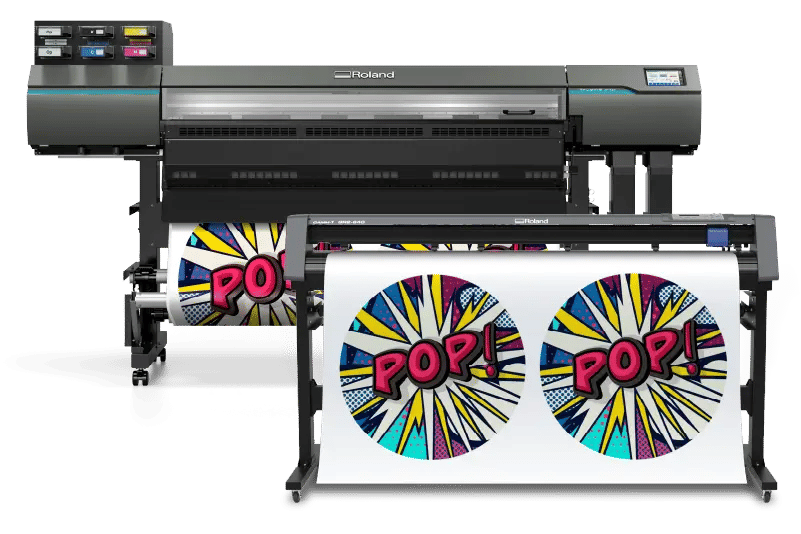

Image shown may not represent AP-640![Image showing a Powerful Print Then Cut combination : Roland DG's TrueVIS AP-640 Latex printer and the powerful GR2-640 cutting plotter](https://www.rolanddg.eu/-/media/roland-dg/images/products/truevis/ap-640/powerfull-hardware/ap640printcut.webp?la=en-150&hash=68A19CC1D403046A958217C828BC57CA)
Easily generate registration marks and pair the TrueVIS AP-640 with Roland DG's fast and powerful GR2-640 cutting plotter.
Intuitive Software
The TrueVIS AP-640 hardware allows you to do even more when paired with VersaWorks 6 and Roland DG Connect. Developed specifically for Roland DG, our fast and flexible software gives you all you need to produce your work, your way.

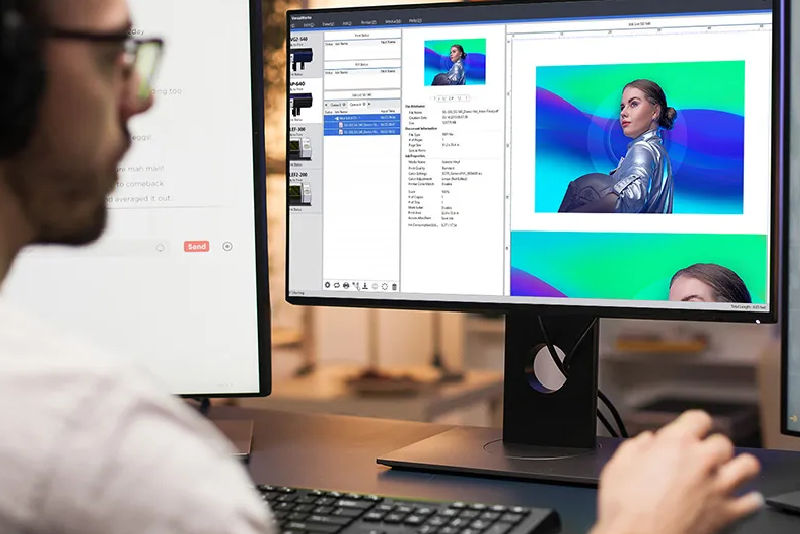

![VersaWorks software on a computer screen](https://www.rolanddg.eu/-/media/roland-dg/images/products/truevis/ap-640/intuitivesoftware/versaworks_rip.webp?la=en-150&hash=23AFEFDE87488CFC6CCD28ED63F5013F)
Work your way with most advanced RIP to date, VersaWorks 6. Packed with powerful print production features, as standard. Built-in tilling functionality and printer controls make it easy to divide up and print long runs.
![Image shows a happy person using the Roland DG Connect app on his smartphone, and shows the data screens in the background of what he sees on his screen](https://www.rolanddg.eu/-/media/roland-dg/images/products/truevis/ap-640/intuitivesoftware/roland_dg_connect_app.webp?la=en-150&hash=EFA0294DEAB389EC712EAF8687806563)
Seamlessly manage your entire print operation from a single app. Monitor your printer whilst it's completing long graphic runs and keep your business running at optimal performance with Roland DG Connect.
Tired of making compromises with your current latex printer? Want to know how the TrueVIS AP-640 can help your business? Our print experts are waiting to answer your questions and discuss how much you could benefit.
Additional Information
Specifications
Model | AP-640 | ||||||
Printing method | Piezo ink-jet method | ||||||
Media | Width | 259 to 1625 mm |
|||||
Thickness | Max. 1.0 mm (0.039 in.) with liner | ||||||
Roll outer diameter | Max. 250 mm (9.8 in.) |
||||||
Roll weight | Max. 45 kg (99 lb.) | ||||||
Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||||||
Printing width 1 | Max. 1615 mm (63.5 in.) | ||||||
Ink | Type | Latex ink 700 ml pouch | |||||
Colours | Four colours (cyan, magenta, yellow, and black) and optimizer | ||||||
Print resolution (dots per inch) | Max. 1200 dpi | ||||||
Ink drying system 2 |
Print heater set temperature: 25 to 45°C (77 to 113°F) Dryer set temperature: 70 to 110°C (158 to 230°F) |
||||||
Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
Power-saving function | Automatic sleep feature | ||||||
Rated Input |
Printer: 200-240 Va.c. 50/60 Hz 3 A Dryer 1: 200-240 Va.c. 50/60 Hz 10 A Dryer 2: 200-240 Va.c. 50/60 Hz 10 A |
||||||
Power consumption | During operation | Approx. 4000 W | |||||
Sleep mode | Approx. 65 W | ||||||
Acoustic noise level | During operation | 69 dB (A) or less | |||||
During standby | 53 dB (A) or less | ||||||
Dimensions (with stand) | 2886 mm x 836 mm x 1550 mm |
||||||
Weight (with stand) | 266 kg (587 lb.) | ||||||
Environment 3 | During operation | Temperature : 20 to 30 °C (68 to 86 °F), |
|||||
Recommended Environment | Temperature : 20 to 25 °C (68 to 77 °F), |
||||||
Not operating | Temperature : 5 to 40 °C (41 to 104 °F), |
||||||
Included items | Dedicated stand, power cords, dryers, media take-up unit, media holders,
separating knife, replacement blade, cleaning liquid bottle for maintenance, drain bottle, |
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
