TrueVIS VF2-640 Specifications
Model | VF2-640 | |
Printing method | Piezo ink-jet method | |
Media |
Width | 259 to 1,625 mm |
Thickness | Max. 1.0 mm with liner | |
Roll outer diameter |
Max. 210 mm | |
Roll Weight | Max. 40 kg | |
Core diameter (*1) | 76.2 mm or 50.8 mm | |
Printing width | Max. 1,615 mm | |
Printing resolution | Max. 1200 dpi | |
Ink | Type | TrueVIS INK TR2 500 cc pouch (White 250 cc) |
Colour | Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and White) |
|
Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and Orange) | ||
Eight colours (Cyan, Magenta, Yellow, Black, Light Black, Orange, Green and White) | ||
Seven colours (Cyan, Magenta, Yellow, Black, Light Black, Orange and Green) |
||
Four colours (Cyan, Magenta, Yellow and Black) |
||
Distance accuracy (when printing) (*2) | Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater | |
Media heating system (*3) | Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F) | |
Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
Power-saving function | Automatic sleep feature | |
Power requirements | AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz | |
Power consumption | During operation | Approx. 1090 W |
Sleep mode | Approx. 40 W | |
Acoustic noise level | During operation | 63 dB (A) or less |
During standby | 53 dB (A) or less | |
Dimensions (with stand) | 2945 (W) × 730 (D) × 1310 (H) mm | |
Weight | 200 kg | |
Environment | During operation | Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80%RH (no condensation) |
Not operating | Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80%RH (no condensation) | |
Included items | VersaWorks 6 RIP Software, exclusive stands, power cable, media clamps, media holders, replacement blade for separating knife, manuals, etc. |
Print Modes | Resolution | Pass | Speed | |
4 Colour CMYK | VF2-640 | |||
High Quality |
900 x 900 | 8 | 9.6 sqm/hr | |
Standard | 900 x 600 | 6 | 12.8 sqm/hr | |
High Speed | 600 x 600 | 3 | 20.6 sqm/hr | |
Billboard | 600 x 600 | 2 | 30.4 sqm/hr | |
7/8 Colours (CMYKLcLmLkOr) | ||||
High Quality | 900 x 900 | 13 | 5.7 sqm/hr | |
Standard | 900 x 600 | 10 | 7.6 sqm/hr | |
High Speed | 600 x 600 | 5 | 12.3 sqm/hr |
Print Modes | Resolution | Colour | Pass | Speed | |
8 Colours CMYKLcLmLkWh | VF2-640 | ||||
High Quality |
900 x 900 | CMYKLcLmLk | 16 | 4.8 sqm/hr | |
W >CMYKLcLmLk | 20 | 1.1sqm/hr | |||
CMYKLcLmLk> Wh | 20 | 1.0sqm/hr | |||
White | 20 | 3.1sqm/hr | |||
Standard | 900 x 600 | CMYKLcLmLk | 12 | 6.4 sqm/hr | |
W >CMYKLcLmLk | 12 | 2.0 sqm/hr | |||
CMYKLcLmLk> Wh | 12 | 1.8 sqm/hr | |||
White | 14 | 5.0 sqm/hr |
*1 The media holders of this machine are designed to be used exclusively with media that has a paper tube (core) with an inner diameter of 76.2 mm (3 in.). To use 50.8 mm (2 in.) media, the optional media flanges are required.
*2 Media type: Media specified by Roland DG Corporation. Temperature: 25°C (77°F), humidity: 50%RH. Roll media must be loaded correctly. Excluding expansion/contraction of the media. Not assured when the print heater or dryer is used. Assumes all correction and adjustment functions of the machine have been used properly. Print travel: 1m.
*3 Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.Depending on the ambient temperature and media width, the set temperature may not be reached.
Specifications, designs and dimensions listed may be subject to change without notice.
Due to the nature of white ink, the pigment in this ink will settle in the cartridge and ink flow system, requiring you to shake the cartridge before each use. Outdoor durability is three years for CMYKLcLmLkOrGr inks, and one year for White ink, depending on the media used.
VersaWorks 6 System Requirements | ||
Operating system | Windows® 10 (32/64 bit), Windows® 8.1 (32/64 bit), Windows® 7 Ultimate / Professional (32/64 bit) | |
CPU | Intel® Core™2 Duo, 2.0 GHz or faster recommended | |
RAM | 2 GB or more recommended | |
Video card and monitor | A resolution of 1280 x 1024 or more recommended | |
Free hard-disk space (HDD/SSD) | 40 GB or more recommended | |
Hard-disk file system | NTFS format | |
Optical drive | DVD-ROM drive | |
Other | Internet connection recommended |
Model | Description |
---|---|
TR2-CY | TrueVIS INK Cyan, 500 cc |
TR2-MG | TrueVIS INK Magenta, 500 cc |
TR2-YE | TrueVIS INK Yellow, 500 cc |
TR2-BK | TrueVIS INK Black, 500 cc |
TR2-LC | TrueVIS INK Light Cyan, 500 cc |
TR2-LM | TrueVIS INK Light Magenta, 500 cc |
TR2-LK | TrueVIS INK Light Black, 500 cc |
TR2-OR |
TrueVIS INK Orange, 500 cc |
TR2-GR | TrueVIS INK Green, 500 cc |
TR2-WH | TrueVIS INK White, 250 cc |
TR2-CL | TrueVIS Cleaning Liquid, 500 cc |

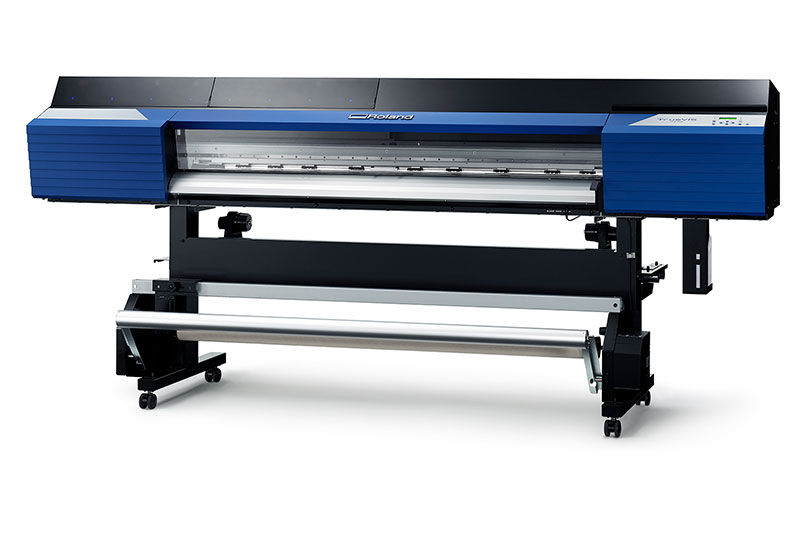

Automated Take-Up System
TU4-64 [For VF2-640]

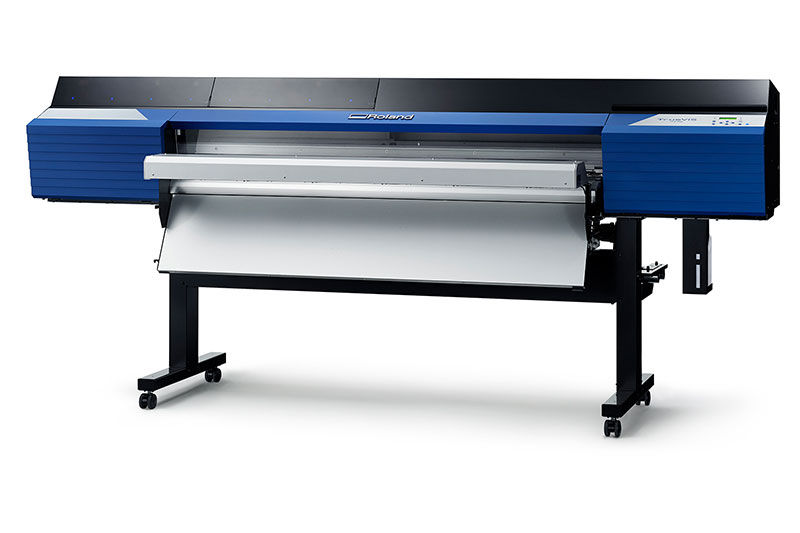

Heater and Blower
DU2-64 [For VF2-640]
Power requirements
AC 100 to 120 V ±10%, 5.5 A, 50/60 Hz AC 220 to 240 V ±10%, 3 A, 50/60 Hz
