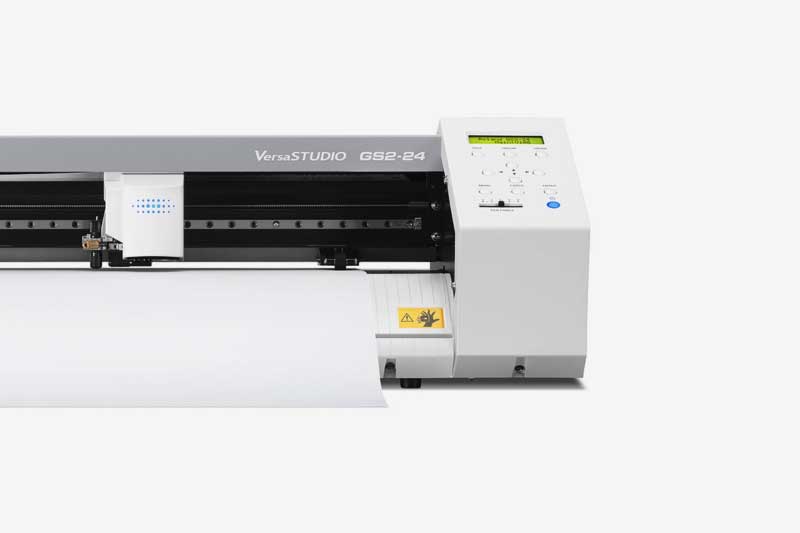

NEWVersaSTUDIO GS2-24 Desktop Vinyl Cutter
Compact, powerful and easy to use, the GS2-24 desktop cutting plotter is perfect for starting your graphics business or bringing graphics
- Intuitive and user-friendly operation
- Increased power to easily cut hundreds of materials
- Fast and accurate cut performance
- Built to fit into your workflow
Your Story Starts Here
Featuring a selection of compact, easy-to-use and affordable solutions, the VersaSTUDIO range brings professional Roland DG quality to entrepreneurs and small businesses.
Time to Turn Pro
With the GS2-24, you can create professional-quality graphics from a huge range of materials and take your business to the next level. With everything you need to get started, this solution from Roland DG is the only choice for serious entrepreneurs.
10-850
mm/s30-500
gf584
mm25
mSmall Footprint - Big Potential
Create Without Limits
With 40% more cutting force than the previous model, you can cut the most intricate designs from a vast range of materials including:
On Time Every Time
Pinpoint Accuracy
Produce premium quality results whether you're creating large-scale wall art, decorative T-shirt designs or small directional signage. The precision cutting of the GS2-24 allows you to accurately reproduce the tightest corners and thinnest lines.
- Intricate designs and shapes
- Small letters, numbers and symbols
- Consistent results up to 25 m
Work Your Way
Key Benefits
Great Return on Investment Affordable and powerful, the GS2-24 helps you easily grow your graphics production venture. |
|
The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability. |
|
Monitor Status Easily Track the status of every cutting job instantly with a clear LED signal on the cutting carriage. |
|
Cut Printed Sheets Accurately Precise crop-mark detection lets you cut designs produced on your desktop printer. |
Fast Set-up and Ease of Use Plug in and start working immediately thanks to Roland DG’s user-friendly interface. |
|
Intuitive Software Included CutStudio included, letting you easily create designs and cut in a simple workflow. |
|
Works with Your Design Software Easily send your designs to the cutter straight from Adobe® Illustrator® or CorelDRAW®. |
|
Built to Suit Your Workflow Featuring both Ethernet and USB ports, the GS2-24 can work with your set-up. |
The Complete Solution
Go even further with our latest desktop cutting plotter*
Produce your graphics with a powerful software package
Build an efficient and reliable business with real-time analytics
Secure your investment with industry-leading support
Available Accessories
Additional Information
Specifications
VersaSTUDIO GS2-24
Drive system | Digital control servo motor | |
Cutting mechanism | Media-moving method | |
Acceptable material size |
Width | 50 - 700 mm (1.97 in. - 27.5 in.) |
Length | Roll material: no restriction Flat material: 100 mm (3.94 in.) or more |
|
Maximum cutting area | 584 mm (Width) × 25,000 mm (Length) (22.9 in. × 984 in.) | |
Usable tools |
• CAMM-1 series blade (ZEC-U5032 / U5022 / U5025 / U3017) • Flat Bed blade (ZEC-U1715 / U3050 / U3075 / U3100) • Window film blade(ZEC-U5010) |
|
Cutting speed | 10 - 850 mm/s (0.39 - 33.4 in./s) | |
Blade force | 30 - 500 gf | |
Mechanical resolution | 0.0125 mm/step (0.49 mil./step) | |
Software resolution | 0.025 mm/step (0.98 mil./step) | |
Distance accuracy*1 | Error of less than ±0.2% of distance traveled or 0.1 mm (3.94 mil.), whichever is greater | |
Repeatability *1, *2 | 0.1 mm (3.9 mil) or less | |
Alignment accuracy for cutting printed material *1, *3 | ±1 mm (±39.4 mil.) or less for movement distance of 210 mm (8.3 in.) or less in material-feed direction and movement distance of 170 mm (6.7 in.) or less in width direction (Does not take influence of printer and material into account) | |
Connectivity | • Ethernet (automatic switching between 10BASE-T and 100BASE-TX) • USB 2.0 (FULL SPEED compliant) |
|
Replot memory | 2 MB | |
Command system | CAMM-GLⅢ | |
Power supply | Dedicated AC adapter Input: 100 - 240 Vac, 50/60 Hz Output: 24 Vdc 2.7 A |
|
Rated current | 1.0 A | |
Power consumption | Approx. 24 W | |
Acoustic noise level | During operation | 70 dB (A) or less |
During standby | 40 dB (A) or less | |
Outer dimensions | 860 mm (Width) × 319 mm (Depth) × 235 mm (Height) (33.9 in. × 12.6 in. × 9.3 in.) | |
Weight | 13.5 kg (30 lb.) | |
Environment | Temperature | 5 - 40 °C (41 to 104 °F) |
Humidity | 20 - 80 %RH (no condensation) | |
Included items | Power cord, AC adapter, Blade, Blade holder, Roller base, USB cable, Alignment tool, Manuals |
- *1 According to material and cutting conditions as specified by Roland DG Corporation.
- *2 • Excluding expansion/contraction of the media
- • Length in sheet feed direction: Within 1600 mm (62.9 in.)
- *3 According to measurement standards as specified by Roland DG Corporation.
• Software must be included Roland DG Corporation software.
• Assumes use of a laser or inkjet printer with a resolution of 720 dpi or greater.
• Excludes glossy and/or laminated material.
• Excludes effects of warped printing due to accuracy of printer or effects of expansion/contraction of material.
• May not be read correctly by the sensor depending on the printer ink (black) used.
Protect Your Investment
- Factory-trained service engineers
- Quick installation and first-time set-up
- Expert advice and training
Why Choose Roland DG?
People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.
- More than 40 years of trusted technical excellence.
- Robust, flexible technology and repeatable results.
- Unparalleled post-sales service and support.
Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
