Image of Roland DG's TrueVIS AP-640 Latex Printer

TrueVIS AP-640 logo

Latex Printing That Outperforms the Competition

Save Now with Our Special Offer!

TrueVIS AP-640 Latex Printer for Vehicle Graphics, Exhibition Signage and Wall Coverings.

  • LIST PRICE

    Starting from £ 16,499

    One-year RolandCare Original warranty included

Switch to a latex printer that leaves the competition behind. If you print long graphic runs for vehicles, walls and floors, the award-winning TrueVIS AP-640 is the solution for your business. Our trusted TrueVIS platform is the professional's choice for class-leading print quality, low running costs, and instant finishing. Outperform the competition with:

  • Unbeatable colour and media stability for long and panelled print runs.
  • Natural, vibrant prints that comparable devices can't match.
  • Instant drying inks and dual staggered printheads for immediate finishing.
  • The best ink adhesion and stretchability on a wide range of media for wrapping and specialist applications.

Talk to an Expert

Luis Vivas of Vivas Inc.
Luis Vivas of Vivas Inc.

"In the past I used a leading latex printer, but to be honest with you, the AP-640 is the way to go."

TrueVIS AP-640 logo

- Luis Vivas, Vivas Inc.

Everything You Need to Succeed

Powerful Hardware

Grow your business with premium, reliable TrueVIS hardware.

Intuitive Software

Power your workflow with VersaWorks 6 and Roland DG Connect.

Premium Inks

Get stunning results every time with economical Latex ink.

Roland DG Care Warranty

Protect your investment with industry-leading support

Do More of What You Do Best with Latex Printing

Why settle for second-best? The AP-640 gives you high colour saturation on a wide range of materials and in a shorter time than other devices, meaning your hardware needn't hold you back any longer.

High quality wallpaper printed with digital technology
Image of exhibition stand graphics printed with resin/latex ink
Image showing a digitally printed vehicle wrap

Book a consultation with a Roland DG print expert to find out more about the capabilities of the AP-640.

Talk to an Expert

Powerful Hardware

At Roland DG, we don't just say we have the best print hardware - we know it. Built on the tried and tested TrueVIS platform, already utilised by over 26,000 businesses worldwide, you know you can rely on the TrueVIS AP-640.

Image of a dryer unit on TrueVIS AP-640 resin/latex printer
Touch screen on a TrueVIS AP-640 resin/latex printer
Image of Take-up unit on a TrueVIS AP-640 resin/latex printer
Image of a close up of a printer calibrating automatically

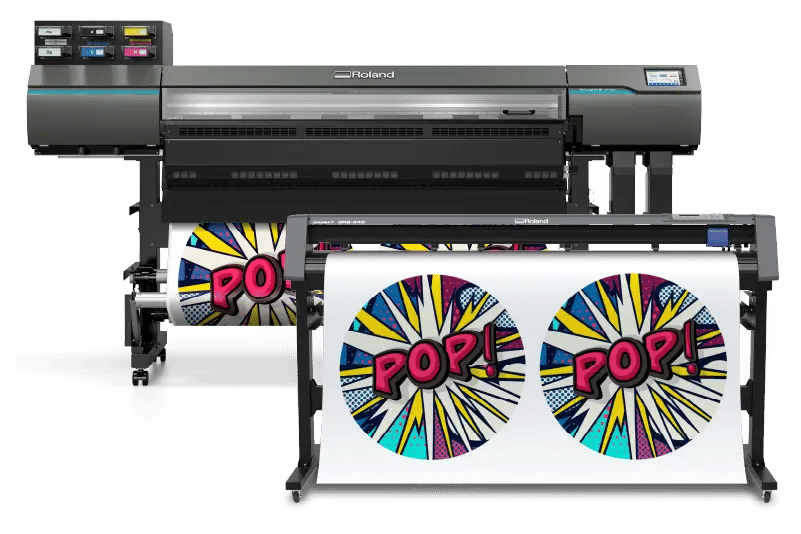

Image showing a Powerful Print Then Cut combination : Roland DG's TrueVIS AP-640 Latex printer and the powerful GR2-640 cutting plotter

Intuitive Software

The TrueVIS AP-640 hardware allows you to do even more when paired with VersaWorks 6 and Roland DG Connect. Developed specifically for Roland DG, our fast and flexible software gives you all you need to produce your work, your way.

VersaWorks software on a computer screen
Image shows a happy person using the Roland DG Connect app on his smartphone, and shows the data screens in the background of what he sees on his screen

Book a Consultation Today

Tired of making compromises with your current latex printer? Want to know how the TrueVIS AP-640 can help your business? Our print experts are waiting to answer your questions and discuss how much you could benefit.

Additional Information

Expand All | Collapse All
Model AP-640
Printing method Piezo ink-jet method
Media Width 259 to 1625 mm(10.2 to 64 in.)
Thickness Max. 1.0 mm (0.039 in.) with liner
Roll outer diameter Max. 250 mm (9.8 in.)
Roll weight Max. 45 kg (99 lb.)
Core diameter 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing width 1 Max. 1615 mm (63.5 in.)
Ink  Type Latex ink 700 ml pouch
Colours Four colours (cyan, magenta, yellow, and black) and optimizer
Print resolution (dots per inch) Max. 1200 dpi
Ink drying system 2 Print heater set temperature: 25 to 45°C (77 to 113°F)
Dryer set temperature: 70 to 110°C (158 to 230°F)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Rated Input Printer: 200-240 Va.c. 50/60 Hz 3 A
Dryer 1: 200-240 Va.c. 50/60 Hz 10 A
Dryer 2: 200-240 Va.c. 50/60 Hz 10 A
Power consumption During operation  Approx. 4000 W
Sleep mode Approx. 65 W
Acoustic noise level During operation  69 dB (A) or less
During standby  53 dB (A) or less
Dimensions (with stand)  2886 mm x 836 mm x 1550 mm (113.7 in. x 33 in. x 61.1 in.)
Weight (with stand) 266 kg (587 lb.)
Environment 3 During operation Temperature : 20 to 30 °C (68 to 86 °F), Humidity: 20 to 80 % RH (no condensation)
Recommended Environment Temperature : 20 to 25 °C (68 to 77 °F), Humidity: 40 to 60 % RH (no condensation)
Not operating Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)
Included items Dedicated stand, power cords, dryers, media take-up unit, media holders, separating knife, replacement blade, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.

Specifications, designs and dimensions listed may be subject to change without notice
1 The length of printing is subject to the limitations of the program.
2 Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
3 Use the machine in an operating environment within these ranges. Also, printing in the recommended environmental conditions (A) is recommended to prevent or reduce any possible differences in print quality depending on media

Download Your AP-640 Datasheet

Get your digital guide to all the features, applications, benefits and specifications of the Large-Format Inkjet Printer.

Download


AP-640 Keypoint Report

Download the comprehensive field test evaluation here.

Download

Roland DG Care
Roland DG Care

Protect Your Investment

Take your business forward with complete peace of mind thanks to Roland DG’s renowned post-sale service. Roland DG Care warranties cover you for much more than device maintenance.

  • Factory-trained service engineers
  • Quick installation and first-time set-up
  • Expert advice and training
Roland DG Logo
Roland DG Logo

Why Choose Roland DG?

People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.

  • More than 40 years of trusted technical excellence.
  • Robust, flexible technology and repeatable results.
  • Unparalleled post-sales service and support.

Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
