High Productivity, Authentic Quality
VersaOBJECTNEW MO Series Flatbed UV Printer
Expand your business with high-definition, high-speed digital printing thanks to the VersaOBJECT MO Series. Our advanced UV flatbed printers give you the power to dominate a growing direct-print market through:
- High-Definition Print: Reproduce small letters, fine textures, gradations, and colour-matched graphics with ease.
- High Productivity: Do more with staggered printheads, powerful UV lamps, and an A2 or A3 print bed.
- Greater Flexibility: Print up to 204 mm, as standard and unlock cylindrical items with an optional attachment.
- Intuitive Interface: Now with touchscreen control and more powerful, easy-to-use VersaWorks software.
MO Series Lineup
Orange, Primer
Orange, Primer
Everything You Need to Succeed
The latest and most advanced UV printer for your business
Power your workflow with our most intelligent engine yet
Get stunning results every time with economical Eco UV ink
Secure your investment with industry-leading support
High-Definition Print
Newly developed print heads and LED lamp technology, coupled with advanced software and industry-leading inks give you the power to reproduce small letters, fine textures, gradations, and colour-matched graphics with ease. Furthermore, Orange and Red inks extend your achievable gamut letting you hit colours that previously could not be reproduced.
Whether you need vibrant image reproduction, high-opacity white ink, or the ability to print textures, the MO Series UV printers have the answer.
High Productivity
The MO Series is engineered to deliver high productivity with print speeds up to approximately 1.4 times faster than comparable models from other brands. The staggered print head configuration, powerful lamps and increased bed-size deliver printing speeds of up to 2.39 m2/h in standard mode*, letting you get more done. Denser white ink means you can print white twice as fast as previous models and Gloss ink can now be printed in thicker layers, doubling the speed.
Improvements to the setup process make it easier to switch between products and jigs of items with ease. The included software also lets you unlock unprecedented productivity with multi-layer printing, meaning that you can outperform your competition when printing on almost any substrate.
*MO-240 only
Greater Flexibility
Roland DG's EUV5 ink is renowned for its broad material compatibility and excellent adhesion. With just one ink formulation, you can print onto a variety of substrates, increasing your ability to adapt to changing market demands.
The MO Series also allows you to go beyond flat substrates thanks to built-in technologies including ‘distance mode’ printing and optional extras such as the rotary printing unit. With these features you can go even further with direct printing and move towards new opportunities.
Excellent Usability
Roland DG's solutions are designed for easy installation, set up and operation. You can confidently operate these professional devices with a quick learning curve thanks to the user-friendly 7-inch touchscreen and intuitive VersaWorks 7 RIP software.
With the Roland DG Connect device monitoring app, you can also get real-time data about your print workflow, letting you schedule maintenance and improve profitability.
Highlighted Features
Staggered Print Heads
Achieve faster printing speeds than ever before with our new large print heads in a staggered array to accelerate CMYK, white and special effects printing.
UV Lamps
Our newly developed UV curing lamps, three times more powerful than conventional lamps, cure and fix the ink in a shorter period of time, enabling increased productivity, whilst maintaining high definition printing.
Vacuum Bed
The MO Series includes a vacuum bed as standard, which lets you print on a wider range of substrates including thinner, more flexible materials.
7" Touch Screen
Easily operate your MO Series printer and access all the features you need with a clear 7" touch screen and intuitive user interface.
Features Summary
|
Broad Substrate Compatibility Print onto a virtually limitless range of flexible and rigid substrates and objects. |
|
Powerful Software Included VersaWorks 7 included, letting you print directly onto a variety of objects in a simple workflow. |
 |
The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability. |
 |
Efficient and Fluid Workflows Produce your work, your way with flexible job-management features. |
 |
Professional Colour Management Match your customers' colour with ease thanks to advanced RIP features. |
|
No Storage Costs Reduce your reliance on screen and pad storage and make your space work for you. |
 |
Printing Distance Mode Print directly onto irregular or curved objects with a high degree of accuracy. |
|
Time Saving Turnaround Switch to digital direct-to-object printing and eliminate long set-up and finishing times. |
|
Low Running Cost Long-life print heads and UV lamps ensure long life and sustained quality. |
|
Texture Libraries Add extra expression to your prints easily with a library full of exciting printable textures. |
|
Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app. |
 |
Fast Set-up and Ease of Use Get started immediately after installation, with user-friendly operation and expert Roland DG training. |
Optional Rotary Printing Unit
The new optional Rotary Axis is quick and simple to install and opens opportunities for printing onto bottles and other cylindrical items 10-121 mm in diameter and 30-540 mm in length.

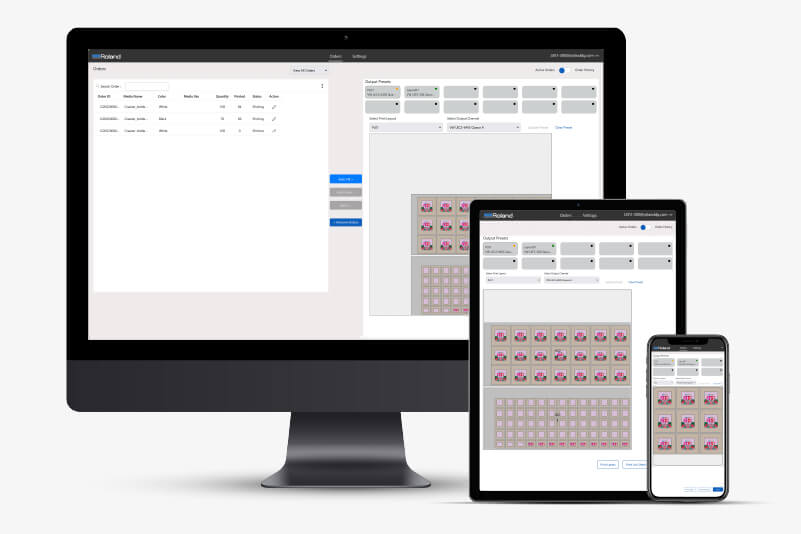

Powerful Software Included
The VersaOBJECT MO Series is even more powerful when paired with VersaWorks 7 and Roland DG Connect. Developed specifically for Roland DG, our fast and flexible software gives you all you need to produce your work, your way.
*PrintAutoMate is an optional expansion to the Roland DG Connect app. Contact your Roland DG representative for more information.
High Quality and Versatile ink
Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility. Talk to a Roland DG expert about your print requirements to discover the ink configuration that’s right for you.
CMYK
Get premium results with high-quality CMYK EUV ink
Gloss
Generate a multitude of tangible effects, simulated embossing and gloss finishes
White
Print high-opacity white details or add sub-coats for dark or transparent materials
Red and Orange
With our True Rich Color preset, extend your available gamut and reproduce brand colours perfectly
Primer
Apply primer to the print area with precision for extensive media compatibility
Certifications
GREENGUARD Gold
ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.
Create Value with Direct Printing
Introducing VersaOBJECT from Roland DG - a comprehensive solution that enables anyone to easily print directly onto 3D objects made of a variety of materials.
Specifications
| Model | MO-240 | MO-180 | ||||||
| Printing Method | Piezo ink-jet method | |||||||
| Attachable objects to be printed on |
Width | Max. 640 mm (25.1 in.) | Max. 488 mm (19.2 in.) | |||||
| Length | Max. 488 mm (19.2 in.) | Max. 335 mm (13.1 in.) | ||||||
| Thickness | Max. 204 mm (8 in.) | Max. 204 mm (8 in.) | ||||||
| Weight | Max. 8 kg (17.6 lb.) (When using a vacuum table: max. 4 kg [8.8 lb.]) | |||||||
| Printing width/printing length (width x length) | Max. 610 mm × 458 mm (24 in. × 18 in.) | Max. 458 mm × 305 mm (18 in. × 12 in.) | ||||||
| Ink |
Type | ECO-UV (EUV5P) 750 ml pouch | ||||||
| Colours |
Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, Red) Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, Gloss, White, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red） Six colours (Cyan, Magenta, Yellow, Black, Gloss, White) and Primer Six colours (Cyan, Magenta, Yellow, Black, Gloss, White） Four colours (Cyan, Magenta, Yellow, Black) |
|||||||
| Ink-curing unit |
Built-in UV-LED lamp | |||||||
| Printing resolution (dots per inch) | Max. 1,200 dpi | |||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |||||||
| Power-saving function | Automatic sleep feature | |||||||
| Power requirements | 100 - 240 Va.c. 50/60 Hz 3.5A | |||||||
| Power consumption |
During operation | Approx. 290 W | ||||||
| Sleep mode | Approx. 70 W | |||||||
| Acoustic noise level |
During operation | 60 dB (A) or less | ||||||
| During standby | 49 dB (A) or less | |||||||
| Dimensions (width x depth x height) | 1,601 mm × 1,267 mm × 760 mm (63.1 in. × 49.9 in. × 30.0 in.) | 1,449 mm × 961 mm × 760 mm (57.1 in. × 37.9 in. × 30.0 in.) | ||||||
| Weight | 211 kg (465.18 lb.) | 174 kg (383.61 lb.) | ||||||
| Environment | During operation(*1) | Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation) | ||||||
| Not operating | Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation) | |||||||
| Included Items | Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect) etc. | |||||||
Protect Your Investment
- Factory-trained service engineers
- Quick installation and first-time set-up
- Expert advice and training
Why Choose Roland DG?
People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.
- More than 40 years of trusted technical excellence.
- Robust, flexible technology and repeatable results.
- Unparalleled post-sales service and support.
Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
