Powerful Performance
at an Affordable Price
NEW VersaSTUDIO A3 Desktop UV Flatbed Printer
Unleash your creativity and maximise your profit with the new VersaSTUDIO BF-16* UV flatbed printer from Roland DG.
- Built for entrepreneurs, creators, artists, and producers, the BF-16 offers unmatched versatility, allowing you to print on a wide range of objects with ease - while maintaining excellent quality and affordability.
- Compact and affordable, it is the perfect partner for your new business.
- With the BF-16, it is easy to embark on the profitable personalisation market, including cell phone cases, cosmetic packaging, fashion accessories, gifts, promotional items, and much more.
Customise
3D Objects
3D Objects
Print vibrant graphics and detailed text directly on objects up to 90 mm high.
Powerful
Productivity
Productivity
Rapid and efficient production with fast printing performance, ensuring excellent profitability.
Compact
Size
Size
Compact enough to fit in small spaces, perfect for retail environments or point-of-sales set-ups.
Starter
Price
Price
Affordable for start-ups, delivering high performance and great profitability.
High
Print Quality
Print Quality
Produce vivid, high-definition prints with precision colour accuracy.
Easy
To Use
To Use
User-friendly multifunction control panel with VersaWorks RIP for a seamless workflow.
Infinite Possibilities
Print reliably on a wide variety of materials including plastic, paper, leather, and wood.
Powerful Productivity
The BF-16 is engineered to deliver high productivity with print speeds of up to 2.08 m²/h in standard bidirectional mode. It also supports simultaneous White and CMYK printing and three-layer printing with White, CMYK, and Varnish with gloss or matte finishing.
Compact Size
The BF-16 is designed in a compact size by focusing on simple functions necessary for customer usability. Its compact footprint allows it to fit easily into a small workspace, making it possible to start a business even in a limited space.
Low Running Costs
Offering high print quality and productivity at an affordable price, it provides exceptional value for both new and existing businesses wishing to grow. Affordable ink prices and a new head control system which optimises ink ejection for enhanced stability and minimal downtime.
Professional Quality
Anyone can easily achieve professional-grade results with the BF-16. It uses the same high-definition print heads and inks found in printers used by professionals. Not only does the BF-16 offer excellent colour reproduction and photographic quality, but it also renders tiny type and fine details with precision. Plus, you can create premium items with White and Gloss inks.

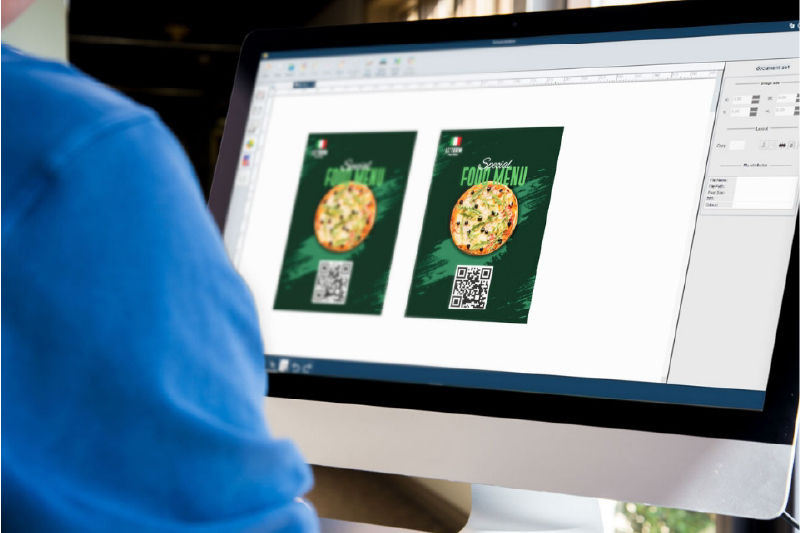

Included VersaWorks 7 RIP Software
For users looking for even greater control over output settings and capabilities, the BF-16 printer comes with VersaWorks 7 output software. Easy to use and powerful, it offers features and tools that optimise quality and streamline processes for the print, ink, and media. Special colour plates for white and gloss are automatically generated with a single button. VersaWorks also simplifies the set-up of print layouts and comes with built-in colour management tools to make reproducing specific colours easier than ever.

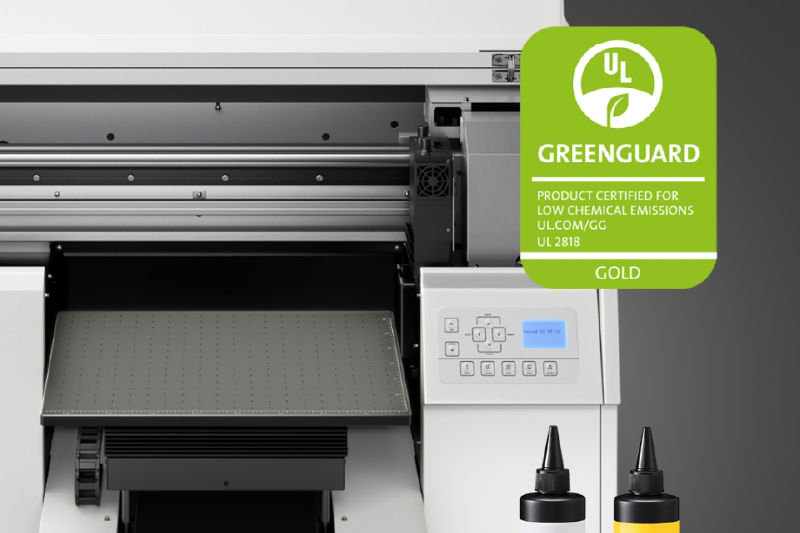

GREENGUARD Gold Certified D-UAB Ink
The BF-16 printer’s specially formulated, wide-gamut D-UAB inks image beautifully, dry instantly, and adhere well on a wide variety of materials. These high-quality inks also have GREENGUARD Gold certification – the world’s most stringent and comprehensive standard for low emissions of volatile organic compounds (VOCs) into indoor air.
Expand Your Creative Possibilities
The VersaSTUDIO product family includes a range of affordable, intuitive desktop digital imaging devices that make it easy for anyone to produce what was previously achievable only by a limited number of professionals. VersaSTUDIO expands creative possibilities, so users can challenge the ordinary, start a business, expand their services, or simply learn digital manufacturing.
Roland DG Care
The BF-16 also comes with Roland DG’s industry-best customer service and support as well as a one-year trouble-free warranty. Your success is our success, so you can rest assured we’ll be with you every step of the way to make sure you are fully satisfied with the performance of your Roland DG device.
More Information
Expand All | Collapse All
Specifications
VersaSTUDIO BF-16
| BF-16 | |||
|---|---|---|---|
| Printing Method | Piezo ink-jet method | ||
| Maximum objects to be printed on | Width | Max. 430 mm (16.9 in.) | |
| Length | Max. 340 mm (13.3 in.) | ||
| Thickness | Max. 90 mm (3.5 in.) | ||
| Weight | Max. 5 kg (11.0 lb.) | ||
| Maximum printing width/printing length | Max. 420 mm × 297 mm (16.5 in. × 11.6 in.) | ||
| Ink | Type | D-UAB (220 ml bottle) | |
| Colours | CMYK Wh Gl | ||
| Ink-curing unit | Built-in UV-LED lamp | ||
| Printing resolution (dots per inch) | Max. 1,200 dpi | ||
| Connectivity | Ethernet 1000BASE-T for control PC only | ||
| Rated input | 100 - 240 Va.c. 50/60 Hz 3 A | ||
| Power consumption | During operation | Approx. 250 W | |
| During standby | Approx. 60 W | ||
| Acoustic noise level | During operation | 67 dB (A) or less | |
| During standby | 50 dB (A) or less | ||
| Dimensions (Width x Depth x Height) | 964 mm × 908 mm × 592 mm (38.0 in. × 35.8 in. × 23.4 in.) |
||
| Weight | 90 kg (198.5 lb.) |
||
| Environment |
Temperature: 22° to 33°C (71.6°F to 91.4 °F), humidity: 30 to 65 %RH (no condensation) Even when the machine is not in use, keep it at a temperature of 22 to 33°C (71.6 to 91.4°F) and a relative humidity of 30 to 65% RH (with no condensation). |
||
| Included Items | VersaWorks RIP, power cord, cleaning liquid, user's manual, etc. | ||
*The BF-16 is only available for purchase in the following countries: Albania, Algeria, Armenia, Azerbaijan, Bosnia, Bulgaria, Croatia, Cyprus, Czech Republic, Estonia, Georgia, Greece, Hungary, India, Israel, Kazakhstan, Kosovo, Kyrgyzstan, Latvia, Lithuania, Maldives, Malta, Moldova, Mongolia, Montenegro, Morocco, North Macedonia, Poland, Romania, Serbia, Slovakia, Slovenia, Sri Lanka, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, Uzbekistan.
