Intuitive and Intelligent
Engraving

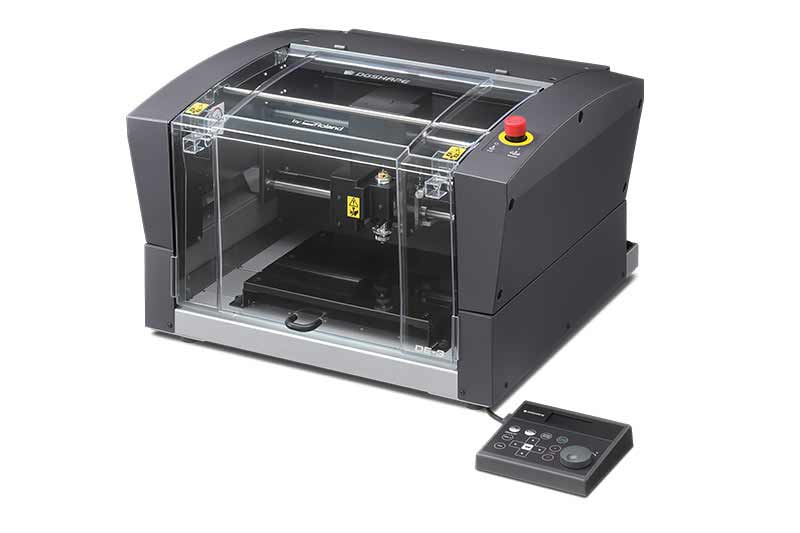

DE-3 Desktop Engraver
The DE-3 desktop engraver uses over 30 years of innovation in engraving technology to deliver impressive versatility and fast, user-friendly automated production.
With laser-pointing technology, automatic depth regulation and other intelligent and intuitive features, the DE-3 produces precise text and graphics onto a huge range of materials and objects. It's the ideal desktop engraving solution for today's user.
Download Brochure
Discover A World of Engraving Applications
Whether you are a sign-maker, equipment manufacturer or awards and gift supplier, the DE-3 desktop engraver is the ideal solution for engraving an impressive variety of giftware, signage, trophies, tools and industrial products. The DE-3’s integrated safety cover and user-friendly operation also make it ideal for use in retail settings.






High Performance Features

Accurate Personalisation
A laser pointer accurately defines the origin point and displays an engraving path preview on the media – set the engraving position at the touch of a button.
Precision Engraving
Easy-to-apply nose cones can be added to the spindle unit to automatically regulate engraving depth on the media surface, delivering consistently precise results.
Fast and Easy Production
Powered by a 20,000 rpm DC brushless motor, the DE-3 harnesses advanced surface detection and other automatic features to make set-up and engraving quick and simple.
Remote Connectivity
Select options such as spindle speed and one-touch machine cleaning without the need for a computer with a hand-held control. Engraving job data can be sent from your computer and stored in the controller after the PC is disconnected.
* DE-3 shown with optional centre vice

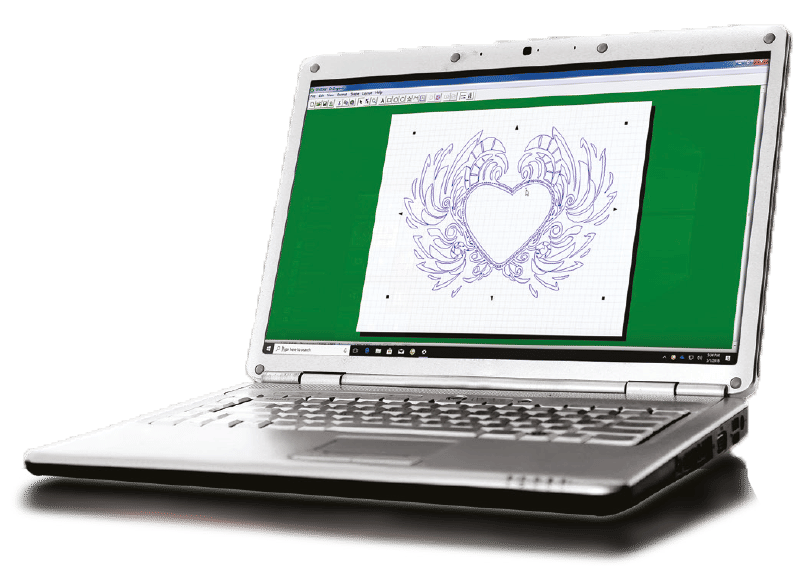

New Software and Open Architecture

The DE-3 uses open source technology that works out-of-the-box with all popular engraving software, industry standard tools and materials. The engraver also comes with Dr. Engrave Plus software that offers a number of additional advantages to the user.
- AI files are now supported along with other standard graphic/vector data
- Standard text engraving, surface levelling and hole drilling are now possible thanks to new levelling
and drilling functions - Includes handy template functions and Excel and CSV databases for fast engraving of serial data jobs
Additional Benefits
![]() |
A compact desktop device with production-class engraver performance. |
![]() |
An optional centre vice will hold irregular objects such as hip flasks, compact mirrors, spectacle frames and more securely in place. |
![]() |
Boasts a small footprint with a generous 305 mm (X) x 230 mm (Y) x 40 mm (Z) work area that fits comfortably into office, classroom, workshop |
![]() |
A clean and safe engraving solution with a fully-enclosed engraving operation. |
Specifications
Model | DE-3 | |
Work table size | 305 mm x 230 mm | |
Maximum work area (Work envelope) | X, Y, Z:305 mm × 230 mm × 40 mm | |
XYZ axis drive system | Stepper motor, 3-axis simultaneous control | |
Operating speed | XY axis: | 0.1-60 mm/sec. |
Z axis: | 0.1-30 mm/sec. | |
Software resolution | 0.01 mm/step | |
Mechanical resolution | XYZ-axis: | 0.00125 mm/step |
Spindle motor | Brushless DC Motor | |
Spindle speed | 5000-20000 rpm | |
Tool loading | Cutter Holder, Collet Type | |
Maximum material thickness | 40 mm(38 mm when using the nose cone) | |
Connection | USB | |
Machine language | RML-1 | |
Power supply | Voltage and frequency | AC 100 to 240V ±10%, 50/60 Hz (overvoltage category: II, IEC 60664-1) |
Rated current | 1.0 A | |
Power consumption | 80 W | |
Operating noise | During operation | 60 dB(or less) |
During standby | 40 dB(or less) | |
External dimensions | 616 mm × 587 mm × 390 mm | |
Machine weight |
35 kg |
|
Installation environment | Indoor use, altitude: 2000 m or less, Temperature 5 to 40 °C, humidity 35 to 80% (no condensation), Environment pollution degree 2 | |
Included items | DGSHAPE software package CD, Power cable, Power adapter, USB cable, Nose cone unit (resin / metal components), Nose unit set screw (fixing screw, spring), Spare set screw (for cutter holder), Solid collet (∅ 3.175 mm), Spanner wrench, Hex wrench, Hex driver, Adhesive sheet, Dust collector adapter, Setup Guide |
Protect Your Investment
- Factory-trained service engineers
- Quick installation and first-time set-up
- Expert advice and training
